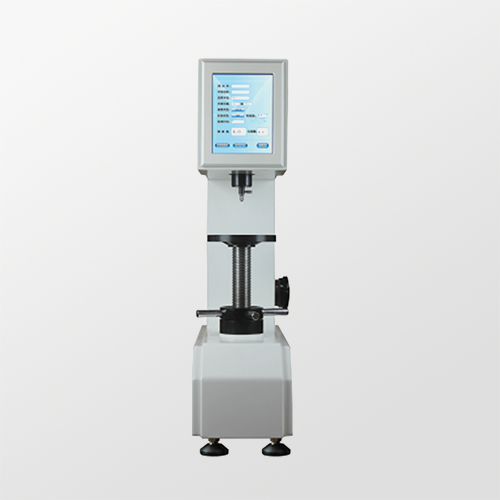

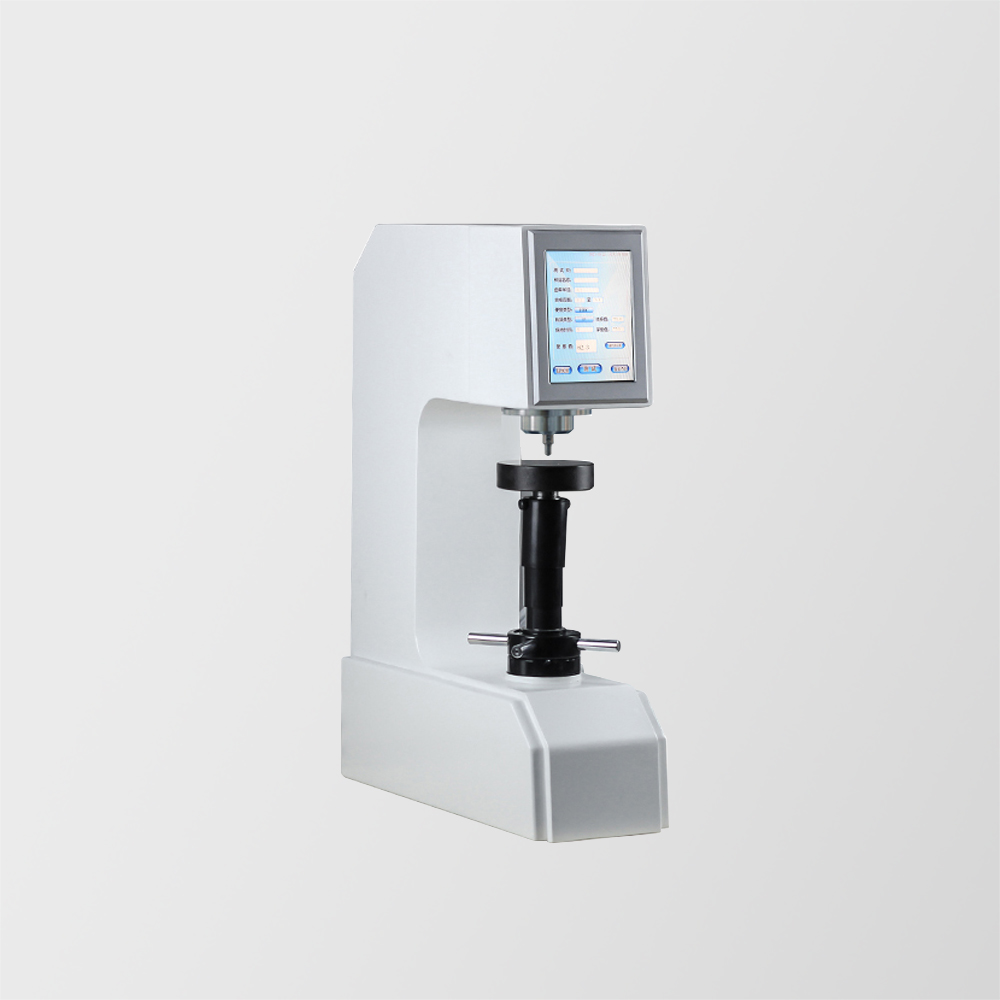

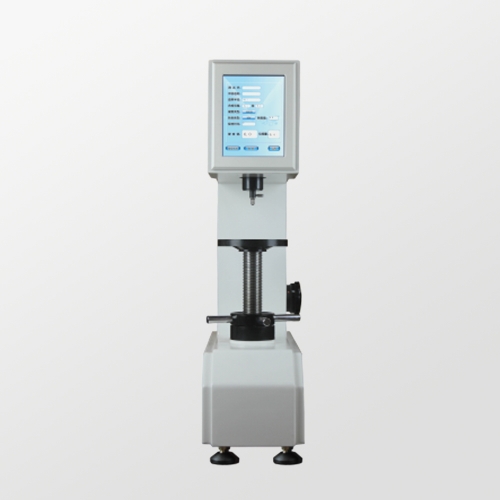

HR-150DX Rockwell Hardness Tester with Touch Screen

The hardness tester is fixed on the surface of the steel workpiece by using a magnetic chuck, no support, no sampling, no need to move the workpiece, and the test can be completed by only one-sided contact。
Description
Product Introduction

Electronic electric loading, high precision sensors, with a unique closed loop control system.

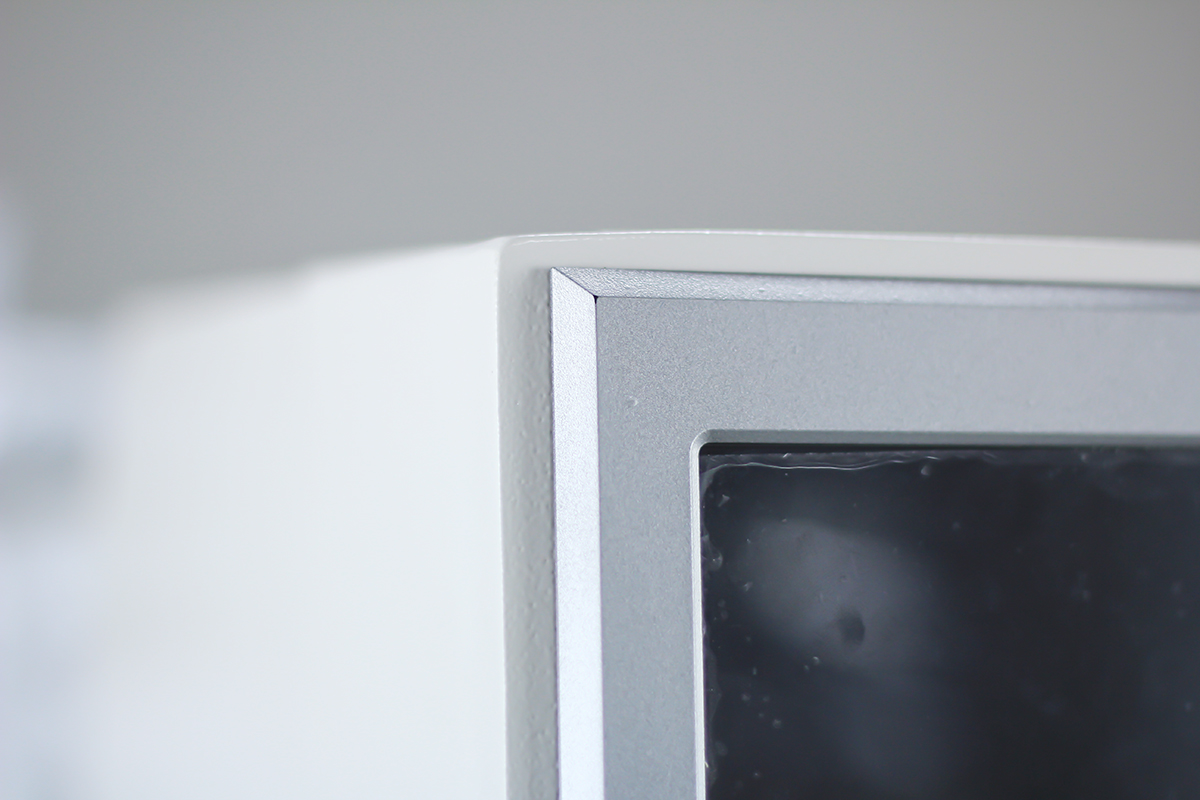

With the touch screen interface, the operator can directly select the hardness scale, and the force value can be changed automatically in the test parameters.
According to the standard hardness block, each hardness scale is divided into high, middle and low sections for automatic correction.
The test force can be automatically corrected by standard dynamometer.
Automatically apply the initial test force and the main test force.
Powerful data processing function, including: HR, HB, HV and other hardness system conversion, set the qualified range, automatic alarm over the limit, can input the tester, sample name and other information.
More sample and test information, measurement data USB disk saved in EXCEL format, easy to edit and process.

Technical Parameters
Model HR-150DX
Initial test force 10 KGF (98.07 N)
Main test force 60kgf(588N)   100kgf(980N)    150kgf(1471N)
Hardness scale HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRH, HRK, HRL, HRM, HRR, HRP, HRS, HRV
Rockwell test range HRA:20-95, HRB:20-100, HRC:20-70, HRD:40-77, HRE:70-100, HRF:60-100, HRG:30-94, HRH:80-100, HRK:40-100, HRL:100-120, HRM:85-115, HRR:114-125
Meet standard BSEN 6508, ISO 6508, ASTM E18, GB/T230
Dwell time 0-99s
Hardness resolution 0.1 HR
Error of test force < 1%
Data output LCD display
Data is stored The measured values are saved on USB flash drive in Excel format
Conversion scale Rockwell, Brinell and Vickers
Maximum allowable specimen height 200mm
Distance from indenter to wall 200mm
size 560 * 220 * 800 mm
Weight 70kg
Power supply AC220 + 5%, 50 ~ 60 hz

Operation Interface
Standard Accessories
Item quantity Item Quantity

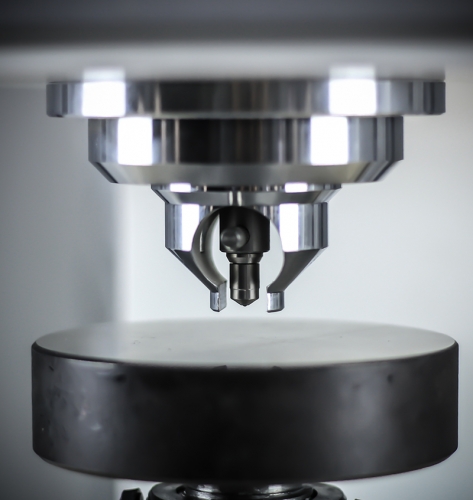

Diamond Rockwell indentor 1 Diameter 1.5875mm ball head 1
Hardness block (HRC high and low 2 pieces, HRB 1 piece) 3 Large, medium and V-shaped test tables Each 1
Spare fuse (2A) 2 Nylon universal sole 4
U disk, touch pen Each 1 Dust cover 1
Power cord 1 Instructions 1
Product qualification certificate, warranty card 1
